| High Light: | variable piston pump,variable displacement piston pump |
||
|---|---|---|---|

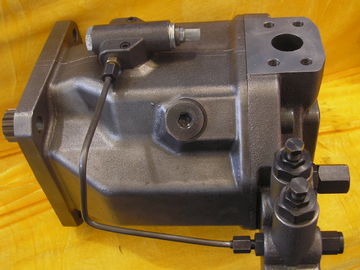

Low Noise Pressure Flow Control Axial Hydraulic Pump Single 140cc
Quick details
140cc Displacement Axial Hydraulic Pumps
Pressure , Flow , torque control
Side port type, single pump
SAE 4 hole UNC inch thread
for Metallurgy hydraulic system
Applications:
Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader , Metallurgy hydraulic system.
Axial piston pump, displacement is 140cc.
Pressure , Flow , torque control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 4 hole UNC inch thread
Side port type, single pump
Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
Specifications:
Specifications |
|
|
| 16/18 | 28 | 45 | 71 | 100 | 140 |
Displacement |
| Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 |
Max speed |
| nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Max. flow | in nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 |
in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
Max. power (Δp=280bar) | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
Max. torque (Δp=280bar) | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Weight |
| m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
