Well Drilling equipment Solid Control Equipment Horizontal submersible slurry pump

large.img.alt
small.img.alt

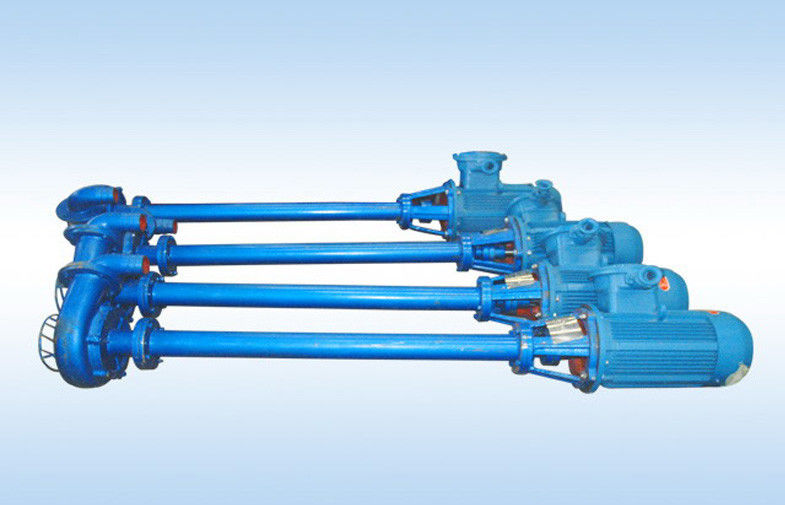

Large Image :  Well Drilling equipment Solid Control Equipment Horizontal submersible slurry pump

Product Details:
Place of Origin: CHINA
Brand Name: KOMAL
Model Number: 80YZ80-20B
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Wooden box or customized
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 10000 set/ month
Detailed Product Description
High Light:

mud processing system

,

drilling fluid equipment

Well Drilling equipment Solid Control Equipment Horizontal submersible slurry pump



Quick Detail:



1, Model: 50YZ20-18

2, Power :1450r/min

3, Speed %: 42-51

4, Lift: 18-30m

5, Efficiency:3-45KW

6, Flow: 20-270m





Description:

Submersible slurry pump is with structure of vertical single stage and single suction overhung centrifugal pump, it is made of abrasion-resistant alloy, it can convey medium with high concentration particles. There is no bearing and gland seal Seal between impeller and pump body, so it is maintenance-free and high temperature resistant, it is ideal equipment to provide impetus for desander, desilter and centrifuge.







Specification:



Model Flow Lift Power Speed Efficiency
m3/h (m) (r/min) (%) (KW)
50YZ20-18 20 18 1450 42 3
50YZ40-10 40 10.5 1450 47 4
50YZ50-12 60 10.8 1450 55 5.5
80YZ50-20 60 18 1450 48 7.5
80YZ80-20B 80 13.4 1450 51 7.5
80YZ80-20A 90 15 1450 51 11
100YZ100-30A 110 24 1450 54 18.5
100YZ100-30 100 31 1450 54 22
120 28 1450 56
100YZ160-38B 164 26 1450 50 30
150YZ250-40B 240 24 1450 50 37
150YZ250-40A 270 30 1450 51 45







Applications:



Oil field drilling,solid control system/equipment,drilling equipment,drilling fluid treatment etc.










Competitive advantages:



Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time.
