This hydraulic vane pump was developed to meet ever increasing demands for vehicle by our company .This series pump adopts replaceable pumping cartridge all parts that wear none contact the body .Field service can be accomplished without removing the pump from its mouting , eliminating the need for factory repair which reduces expensive downtime, with hydraulic balance, bearing loads resulting from pressure are eliminated and the only radial loads are those imposed by the drive itself. Longer life and minimum maintenance are direct results; wear compensation is inherent in the design .Intra-vane design enables that continously applied outlet pressure between vane and intra vane reduces tip loading to the extent desired on a particular pump. Outward balanced thrust of vane inlet port aera is equal to outlet pressure times projected area of end of intra-vane. This thrust can be controlled without sacrificing vane thickness ,To resist the cantilever loads of any practical outlet pressure ,vane thickness can be increased without increasing load bettween and cam ring .The dual vane arrangement assures solid tracking of the cam ring throughout the pumping cycle, This means less leakage across vane tips which enhances volumetric efficiency, low noise and less cam ring wear .Wear resistant flexible side plates are available in the design ,thus further increasing the speed and service life.
Installation meet ISO\SAE Standards ,with compete specifications ,reliable performance ,construction and convenient installation and easy maintenance, it is widely used in hydraulic systems for vehicles and other machineries.

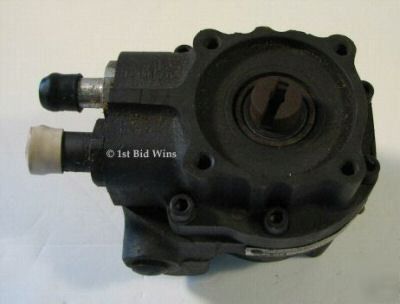

Vickers VQ hydraulic vane pump
1.High performance, low noise and long life
2.Completely interchangeable with original
3.Very competitive price
4.1 year of warranty
5. Widely applicable for industrial machinery and agricultural machinery etc.
|displacement 18-193ml/r Pressure:21MPa|
|Example:F3-H20VQ-12A M F-1A-10L|
|Refit||Series||code||Port connection||Port connection thread||Mounting type||shaft type||outlet position||Design number||Rotation|
|F-Viton seal||H20VQ||5,8,9,11,12,14||A-SAE 4-bolt flange||Metric thread||Flange mounting,omit||1-straight keyed||10||(viewed from shaft end of pump)|
|H35VQ||21,25,30,35,38||Inch thread,omit||Foot mounting||86-heavy dutystraight keyed||L-left hand for counterclockwise|
|Omit if not required||H45VQ||42,45,47,50,60||11-splined key||R-right hand for clockwise|
