Self Priming Jet Pump High Pressure Centrifugal Pump 370W 550W 750W

large.img.alt
small.img.alt small.img.alt

Large Image :  Self Priming Jet Pump High Pressure Centrifugal Pump 370W 550W 750W

Product Details:
Place of Origin: Ningbo, China
Brand Name: JINTAI PUMP
Certification: CE
Model Number: JETDP
Payment & Shipping Terms:
Minimum Order Quantity: 50 set
Packaging Details: WOODEN CASE
Delivery Time: 15DAYS FOR BULK ORDER, 3 DAYS FOR SAMPLE
Payment Terms: 100% T/T, Western Union
Supply Ability: 5000PCS PER WEEK
Detailed Product Description
High Light:

Stainless Steel Centrifugal Pump

,

High Pressure Centrifugal Pump



Self Priming Jet Pump High Pressure Centrifugal Pump 370W 550W 750W





Competitive advantages:



1. Easy to mount.

2. Mechanical shaft seal

3. Easy installation and maintenance





Operating Limitation


Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar





Quick Detail:



  • Brand Name: JINTAI water pumps
  • Theory: Self-Priming Jet Pump
  • Input Voltage (V): 220V,50Hz
  • Input Power: 370w 550w 750w
  • Pressure: High Pressure
  • Origin of water pumps: made in China





Construction Features



Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Impeller: brass/plastic
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon





Description:

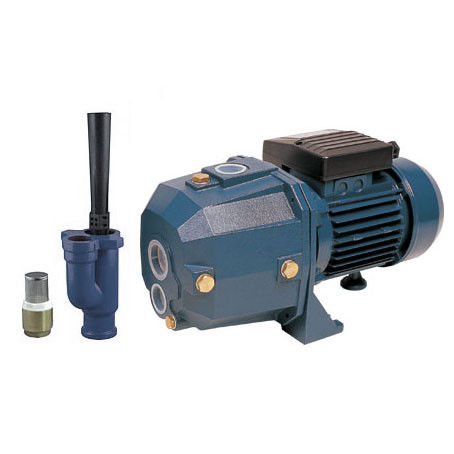

The JETDP pumps are regarded as one of the best pumps for deep well. In fact they consist of two pumps connected in series, one is ejector-pump and the other is centrifugal pump. The ejector pump is lowered in well and connected to the centrifugal pump body by two pipes. These pumps are suitable for pumping clean water and chemically non-aggressive fluids. They are extremely reliable, economical and simple to use, finding many uses in domestic applications and the automatic distribution of water from small and medium-sized surge tanks form an automatic booster systems to supply water. The most remarkable character is that they can be used to supply clean water from extremely deep well. To ensure adequate counter-pressure, it is always to install a foot valve with a filter on the suction opening.
Pumps should be installed in a covered area, protected against the weather.





Applications:



household and domestic applications

water supply from wells and pools, pressure boosting, garden sprinkling, washing booths





Specifications :



Self Priming Jet Pump High Pressure Centrifugal Pump 370W 550W 750W 0
