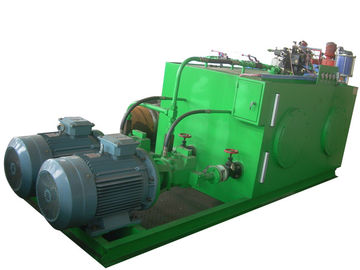

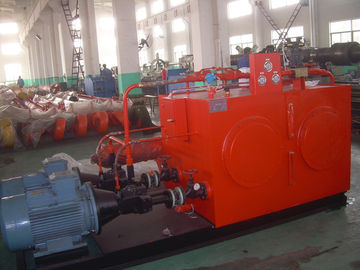

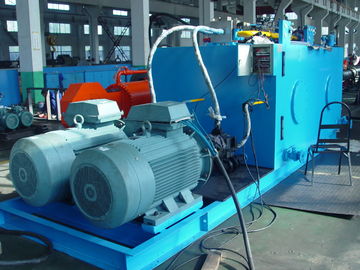

Independent Hydraulic Pump Station For Mainframe And Hydraulic Devices Separability

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Independent Hydraulic Pump Station For Mainframe And Hydraulic Devices Separability

Product Details:
Place of Origin: Changzhou, China
Brand Name: CZHydraulic
Model Number: hydraulic pump station
Structure: Piston Cylinder
Power: Hydraulic
Body Material: Steel
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: Standard Export Package
Delivery Time: 15~60 days depends on products type
Payment Terms: L/C,T/T
Supply Ability: 2400 Ton/Tons per Year
Port: SHANGHAI
Detailed Product Description
High Light:

electric hydraulic pump

,

hydraulic gear pump

Independent Hydraulic Pump Station For Mainframe And Hydraulic Devices Separability





Key Specifications/Special FeaturesKey Specifications/Special Features



hydraulic pump 16ml/r-270ml/r(Parker/Rexroth/Hydcom)
motor 4kw-315kw(SiEMENS/ABB/QIDONG(china)
valves Parker/Rexroth/Vickers/Atos/Hydcom/Yuken
pipe stainless steel
tank stainless steel
  According to the requirements of driving device of flow, pressure and flow rate oil, hydraulic system can implement various rules of action


Hydraulic pump station also known as the stations are independent hydraulic device.

It request by the oil gradually .And controlling the hydraulic oil flow direction, pressure and flow rate, applied to the mainframe and hydraulic devices separability of hydraulic manchinery.

Users will be provide after the purchase hydraulic station and host of implementing agencies (motor oil or fuel tanks)connected with tubing, Hydraulic machinery can be realized from these movements and the work cycle.

Hydraulic pump station is installed, Manifold or valve combination.tanks, a combination of electrical boxes.

Functional components:

Pump device – is equipped with motos and pumps, hydraulic station is the source of power.to mechanical energy into hydraulic oil pressure can be.

Manifold – from hydraulic valve body and channel assembled.Right direction for implementation of hydraulic oil, pressure and flow control.

Valve portfolio – plate valve is installed in up board after board connects with the same functional IC.

Tank – plate welding semi-closed containers, also loaded with oil filtering network, air filters, used oil, oil filter and cooling.

Electrical boxes – at the two patterns.A set of external fuse terminal plates;distribution of a full range of electrical control.

Hydraulic Staton principle:motor drive pump rotation, which pump oil absorption from the oil tank.to mechanical energy into hydraulic pressure to the station, hydraulic oil through Manifold(or valve combinations)realized the direction, pressure, After adjusting flow pipe and external to the cylinder hydraulic machinery or motor oil, so as to control the direction of the motive fluid transformation force the size and speed the pace of promoting the various acting hydraulic machinery.

Independent Hydraulic Pump Station For Mainframe And Hydraulic Devices Separability 0
