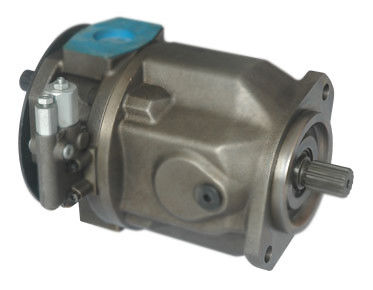

High Speed Hydraulic Axial Piston Pump , Concrete Truck Pump A10VSO71cc

large.img.alt
small.img.alt

Large Image :  High Speed Hydraulic Axial Piston Pump , Concrete Truck Pump A10VSO71cc

Product Details:
Place of Origin: China
Brand Name: Hengyuan Hydraulic
Certification: ISO9001
Model Number: A10VSO18/28/45/71/100/140
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Detailed Product Description
Application: Concrete Pump Truck Direction Of Rotation: Clockwise
Feature: Low Noise Mounting Flange: SAE 2 Hole
Power: Hydraulic Pressure: High Pressure
Seals: Perbunan, Viton Structure: Piston Pump
Type The Shaft: SAE Splined, SAE Parallel With Key Usage: Oil
High Light:

variable displacement axial piston pump

,

axial piston hydraulic pump



High Speed Hydraulic Axial Piston Pump , Concrete Truck Pump A10VSO71cc



  Quick details



  Clockwise Rotation High Pressure Axial Piston Hydraulic Pumps

  displacement is 18cc/28cc/45cc/71cc

  Perbunan seal

 SAE 2 hole UNC inch thread

  for Hydraulic system. Ship Hydraulic system

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump







 Parameter





Operating pressure range

Pressure at port B

~ inlet

Nominal pressure PN----------------280bar



Peak pressure PMAX-----------------------350bar

Absolute pressure at port S

Clearance work pressure (10% cycle)---------315bar

  P abs min------------------------0.8bar

Applications with intermittent operating pressures up to

  P abs max------------------------30bar

215 bar at 10% duty are permitted .



     Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.





Description:





Ordering Code

Detail

HA10V(S)

Model  Variable pump,Swashplate  design

Rated pressure 280bar

Peak pressure 350bar



O

Mode of operation Pump,Circuit







28

Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)







DR

Two point ,direct control    ,DRG---       Remote pressure control

Pressure control,Pressure and flow control

DFR1  Pressure and flow control ,Orifice in X-channel closed

Pressure . flow and torque control

/









31

Series:  31 Series







R

 Direction of rotation  R---  Clockwise

                                                                         L---  Anti-clockwise





-









P

P-- Perbunan

Seals V--  Viton





S

Type the shaft:P--- Metric parallel with key

 S-- SAE splined

   K-- SAE parallel with key

U-- SAE splined,reduced dia.

C

Mounting flange:C--- SAE 2-hole

D--- SAE 4-hole

A- ISO 2-hole

  B- ISO 4-hole

62

Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric

service Lines  12---Both sides SAE,SAE flage on opposite side,fixing thread UNC

  61---  SAE,UNC Screw thread,  SAE flage rear ,fixing thread UNC

62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC

NOO

Thru-form:N00- Nowhere shaft

 without through drive

  K**--- Thru

with through drive















































































Specifications:





Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.



Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60





Applications:

Hydraulic system. Ship Hydraulic system.



Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume
