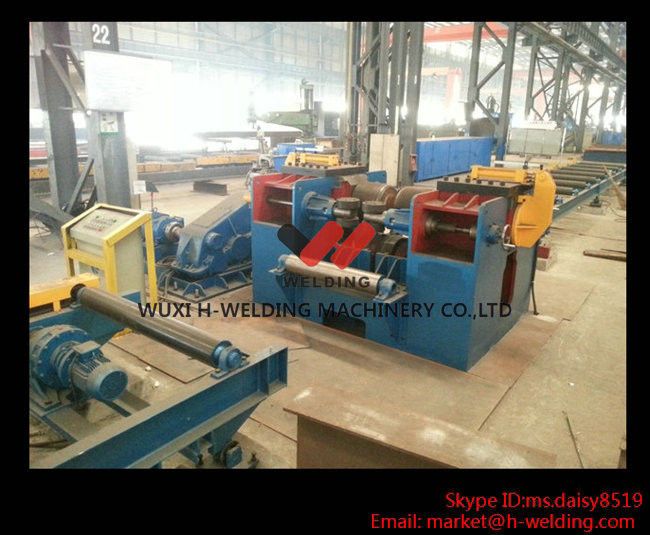

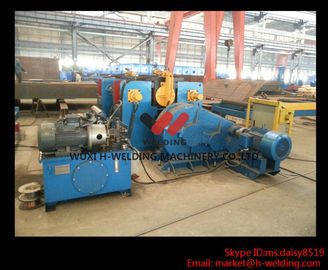

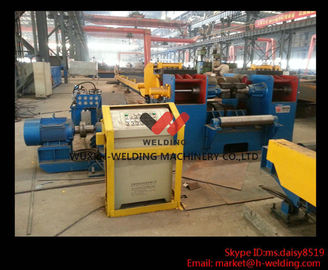

Heavy Duty H Beam Straightening Machine Working On Bigger Flange Thickness With Hydraulic Pump

Specifications:

Description:

• The machine consists of motor reducer,transmission roller,straightening-roller unit,elevating oil-cylinder of driving roller,web-clamp unit,main frame,base,front and rear swing-type elevating conveyor,hydraulic and electric system.
• It features in compact structure,great strength and good rigidity.

Applications:

• Top straightening roller see follow picture. It is shaft-case structure, of great loading capacity.
• Distance adjustment is fulfilled with hydraulic cylinder, stable and reliable. The shaft-case mounting straightening rollers and their revolving-shaft can slide along transverse direction integrally under pushing of oil cylinder, with position displayed on the top gauge.

Competitive Advantage:

• In this way,distance between 2 pairs of top straightening rollers can be modulated accordingly for different specifications of H-beam. That is, various top-roller distances can be adjusted with respect to different flange thickness.
