Payment & Shipping Terms:
|Product Name:||Dissolved Air Flotation||Application:||Water Treatment|
|Material:||CS Or SS||Standard:||ISO|
|Working Capacity:||3-100m³/h||Structure:||Compact Connection|
dissolved air flotation equipment,
dissolved air flotation for water clarification
DAF dissolved air flotation filtration for Meat industry , Poultry processing
By means of innovative pump technology an increase of efficiency up to 80% has been realized e.g. in the dissolved air flotation (DAF) compared to traditional systems for industrial and municipal water and wastewater treatment applications. Specially designed open impellers for multiphase (DAF) pumps are sucking in air automatically - means no separate compressors and tanks required - operate as dynamic mixer with high shearing forces and increase pressure at the same time. This results in clearly reduced investment and operation costs for the benefit of system manufactures and the end users as well.

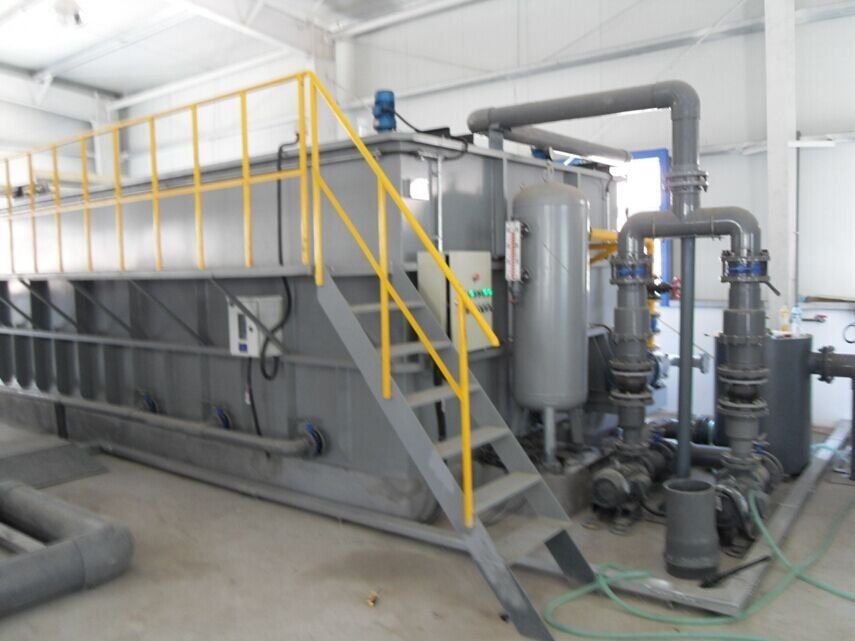

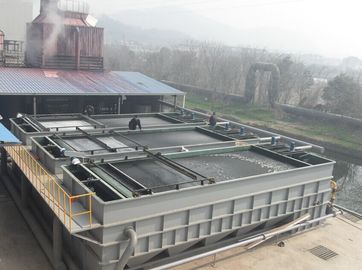

The multiphase pump dissolved air flotation system is a clarification process for the separation of solids, grease and oils. It works by using multiphase pump to mix water and air, then release it, producing a stream of micro-fine air bubbles that attach to solids and float them to the surface, where they can be removed by a surface scraping mechanism.
2. Cheese processing
3. Container washing
5. Food processing
6. Fish processing
7. Metal removal
8. Meat industry
9. Poultry processing
10. Pulp& paper
11. Small goods
13. Vegetable industries
No air compressor
Compare to the traditional dissolved air flotation, no need for air compressor,
which will save cost, power consumption.
This DAF system can be manufactured with any number of chemical reaction
tanks for upstream Ph control or coagulation. The reaction tank is constructed
in stainless steel, with a retention time to suit each application.
This DAF system is usually supplied as skid-mounted, pre-tested units to
For ease of cleaning, this DAF system are designed with a sloping base to
