Cabinet Fabric Dyeing Machine / Hank Yarn Dyeing Machine Stainless Steel

large.img.alt
small.img.alt

Large Image :  Cabinet Fabric Dyeing Machine / Hank Yarn Dyeing Machine Stainless Steel

Product Details:
Place of Origin: China Jiangsu
Brand Name: KD
Certification: CE
Model Number: KDY-10-1400
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: standard package
Delivery Time: 25 days after deposit
Payment Terms: T/T
Supply Ability: 10 SETS in 2 MONTHS
Detailed Product Description
Material: Stainless Steel
High Light:

industrial dyeing machine

,

fabric dye washing machine

Cabinet Fabric Dyeing Machine / Hank Yarn Dyeing Machine Stainless Steel

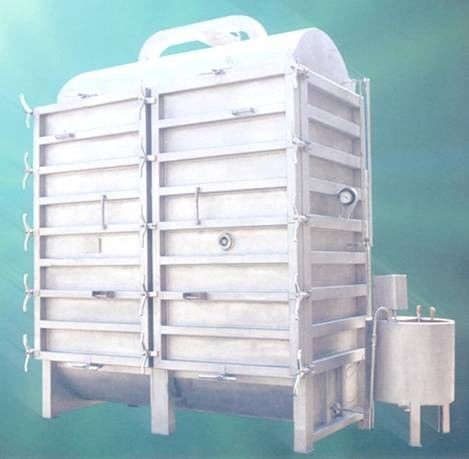

KDY-10-1400 Cabinet type Hank Yarn Dyeing Machine



Brief Introduction



This machine is advanced dying equipment for the hank yarns. It is a main machine for the dying and finishing of the hank yarns of the natural fibers, artificial fibers and blended fibers under normal temperature (max. Temperature 100℃) and normal pressure, with wide suitability, good dying and finishing quality. Technological processes such as refined swelling, bleaching, rinsing, softing and dying etc can be accomplished in one yarn-loading operation. Its installed capacity can be from 5Kg to 500Kg (wool), length of reeled coil is between 1016 to 1830 mm (40 to 75 inch). It is an ideal fabrication equipment for the before & after treatment and dying of the wool, silks, artificial wool and spun rayon fabric etc.



The machine is made of high quality corrosion resistant stainless steel, both strong and durable. Four stages speed-changing belt pulley is used for the fabrications of different kinds of the yarns. Its circulating is rationally designed to make the dye bath to be uniformly flown, so as to ensure the quality of the fabrication.



Technical performances & features



  1. Flowing of the dyeing bath can be automatically changed by the control of the computer, to make the dye bath to be circulatedly flown leftward & rightward, upward & downward, so as to ensure the uniformity of the dying of the hank yarns.
  2. Depending on the requirement of hank yarns, technologies of different kinds of reeled yarns, speed of the axial-flow pump can be changed by means of multi-stage speed-changing belt pulley, so as to adjust the times of circulating of the dye bath.
  3. The machine is equipped with heating tubes, and steam jet tubes as well, on the top and bottom. They can directly make heating and indirectly heat-keeping.
  4. Flow-guiding plate can effectively prevent the hank yarn from being wound during the treatment process.
  5. All the materials of the machine are of the acid- & alkali – resistant stainless steel. Stainless steel plate 304 is used for the part, contacting with the dying bath, of the vat.
  6. The outer box is equipped with the sampler.

Structure

Cabinet Fabric Dyeing Machine / Hank Yarn Dyeing Machine Stainless Steel 0



  1. Vat
  2. Water inlet door
  3. Sampler
  4.  Feeding tub
  5. Feeding pump
  6. Feeding inlet
  7.  Drain opening
  8. Main circulating pump
  9. Indirect heating

Specifications

Specifications

KDY-1000

KDY-

800

KDY-

600

KDY-

300

KDY-100

KDY-

20

Type

 Double box, transversal doors, directly threading up rod.

Volume of dying vat.

8.3m3

7.8m3

6.5m3

3m3

1.5m3

0.3m3

Quantity of dying bath used.

~7.5 m3

~6.8 m3

~6.5 m3

~2.5 m3

~1.2 m3

~0.26m3

Quantity of yarn to be dyed.

Wool

360~

450kg

290~

360kg

245~

273kg

110~

136kg

36~45 kg

7~

9 kg

Acrylicfibers

295~

340kg

250~

316kg

177~

205kg

88~

102 kg

30~

34 kg

5.9~

6.8kg

Technological bath ratio

1:17~1:22

Operating

temperature

Max. Temperature 100℃

Operating steam

pressure:

≤0.5Mpa

Diameter of water inlet

Dg80

Dg80

Dg80

Dg65

Dg40

Dg32

Diameter of water

draining valve

Dg100

Dg100

Dg100

Dg65

Dg50

Dg40

Threading up stick

double rod type

heating mode

Direct heating & indirect heating

cooling mode

Direct cooling & indirect water cooling

Circulating pump

Axial-flow type, four blade, impeller with mechanical sealings, four stages speed-changing belt pulley.

Diameter of impeller

φ330

φ330

φ315

φ230

φ180

φ135

Motor and rated power

Y160M-4

11KW

Y160M-4

11KW

Y132M-4

7.5KW

Y112M-4

4KW

Y100L1-4

2.2KW

Y90S-4

1.1KW

Feeding pump

   Equipped with 2-pole AC motor. 1.5KW

Dye-stuff-dissolving barrel

Equipped with 0.75kw 6-pole AC motor. Double blade stirrer,

direct steam heating

Overall dimensions

(L×W×H)

3683×

2261

×3404mm

3450×

2120

×3404mm

3353×

1905

×3353mm

2540×1499

×3251mm

2337×

1372

×2281mm

1524×

830

×1930mm
