Stainless Steel Centrifugal Pump,
High Pressure Centrifugal Pump

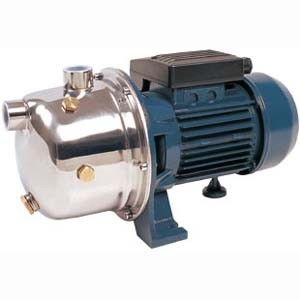

38M - 50M High head / End Suction Centrifugal Pump Self Priming
The JETS series are injection type clean water pumps, which are composed of a centrifugal pump and a nozzle, with stainless steel pump body and spare parts, have the advantages of beautiful design, self-priming in short time, reliable performance, high head and deep suction. They are suitable for pumping clean water and non-aggressive liquid. They are particularly suitable for domestic applications such as supply water from well, pool etc, the automatic distribution of water by surge tanks and pressure switch, gardening, and pressure boosting etc.
Pumps should be installed in a covered area, protected against the weather.
Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar
Pump Body: stainless steel
Motor Housing: aluminum
Shaft: 45#steel /stainless steel
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
household and domestic applications
water supply from wells and pools, pressure boosting, garden sprinkling, washing booths
1. Easy to mount.
2. Mechanical shaft seal
3. Easy installation and maintenance
